Planet WDAP-1750AC

Tuote

Valmistaja

Planet

Tuotenimi

WDAP-1750AC

Valmistajan linkki

http://www.planet.com.tw/en/product/product.php?id=48591#dl

Tuotekoodit

GTIN- / EAN-koodit

• 4711605280570

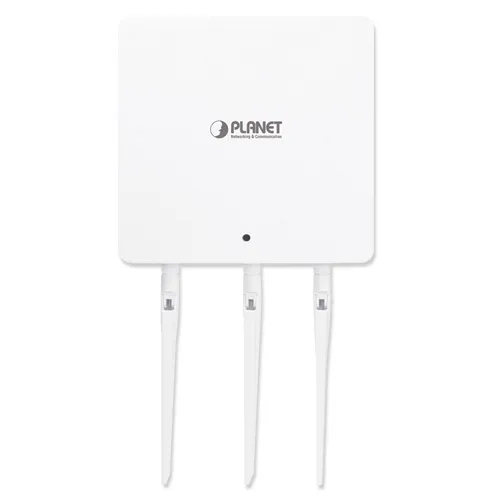

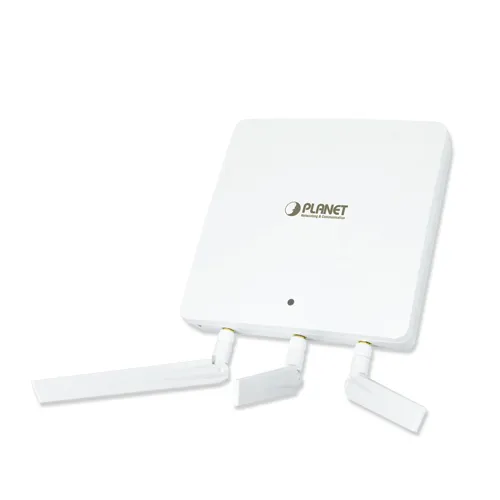

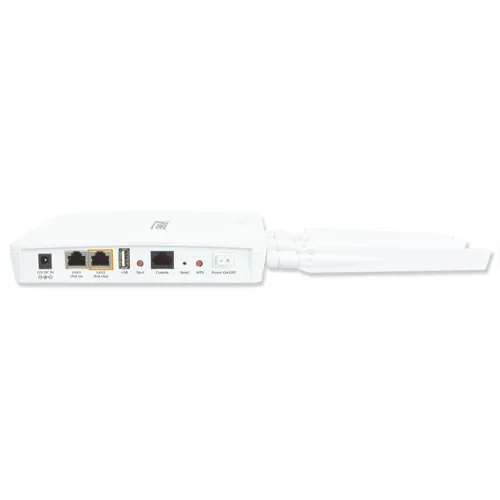

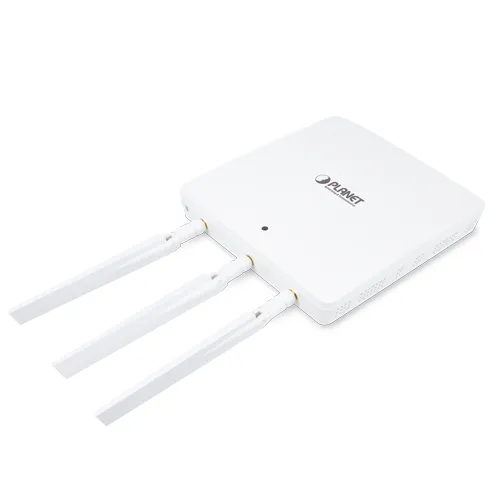

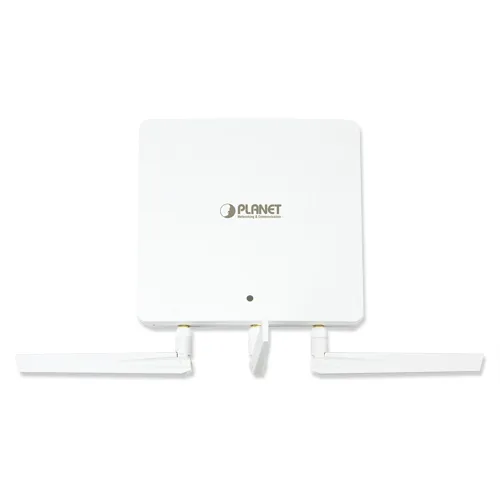

Tuotekuvat

Features

2.4 GHz

Kyllä

5 GHz

Kyllä

Maximum data transfer rate

1750 Mbit/s

Wi-Fi data rate (max)

1750 Mbit/s

Ethernet LAN data rates

10,1000 Mbit/s

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x

Auto MDI/MDI-X

Kyllä

Modulation

16-QAM, 64-QAM, 256-QAM, BPSK, CCK, DBPSK, DBQSK, DSSS, QPSK

Wi-Fi Multimedia (WMM)/(WME)

Kyllä

VLAN support

Kyllä

Operating modes

Access Point (AP),Repeater,WDS

Flow control support

Kyllä

Wireless isolation

Kyllä

Quality of Service (QoS) support

Kyllä

Maximum indoor range

70 m

Receiver sensitivity

5GHz: 802.11ac (VHT20): -64dBm @MCS9 802.11ac (VHT40): -61dBm @MCS9 802.11ac (VHT80): -58dBm @MCS9 802.11n (HT20): -87dBm @MCS0, -67dBm @MCS7 802.11n (HT40): -84dBm @MCS0, -63dBm @MCS7 802.11a: -71dBm @54Mbps 2.4GHz: 802.11n (HT20/40): -87dBm @MCS0 802.11n (HT20/40): -67dBm @MCS7 802.11g: -70dBm @54Mbps 802.11b: -90dBm @1Mbps

Security

Security algorithms

64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA-TKIP, WPA2, WPA2-AES, WPS

MAC address filtering

Kyllä

Service Set Identifier (SSID) features

SSID broadcast on/off

Number of SSID supported

32

Auto Wireless Distribution System (WDS)

Kyllä

Remote Authentication Dial-In User Service (RADIUS)

Kyllä

Protocols

Universal Plug and Play (UPnP)

Kyllä

DHCP server

Kyllä

DHCP client

Kyllä

Management protocols

SNMP, HTTPS

Supported protocols

CSMA/CA, CSMA/CD, TCP/IP, DHCP, ICMP, SNTP

Management features

Web-based management

Kyllä

Syslog

Kyllä

Firmware upgradeable

Kyllä

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

USB 2.0 ports quantity

1

DC-in jack

Kyllä

Power

Power over Ethernet (PoE)

Kyllä

AC input voltage

12 V

Input current

4 A

Power consumption (typical)

20 W

Design

Placement

In-wall

Product colour

White

Housing material

Plastic

Reset button

Kyllä

LED indicators

Kyllä

Internal

Ei

Antenna

Antennas quantity

3

Antenna gain level (max)

2 dBi

Certificates

Certification

FCC, CE

Weight & dimensions

Width

182 mm

Depth

182 mm

Height

30 mm

Weight

470 g

Operational conditions

Operating relative humidity (H-H)

10 - 90 %

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Storage relative humidity (H-H)

5 - 90 %
