Shuttle XPC nano NA20H5

Tuote

Valmistaja

Shuttle

Tuoteperhe / -sarja

XPC nano

Tuotenimi

NA20H5

Valmistajan linkki

https://www.shuttle.eu/en/products/nano/na20h5

Tuotekoodit

Valmistajan tuotekoodit

• NA20H5

GTIN- / EAN-koodit

• 0887993008745

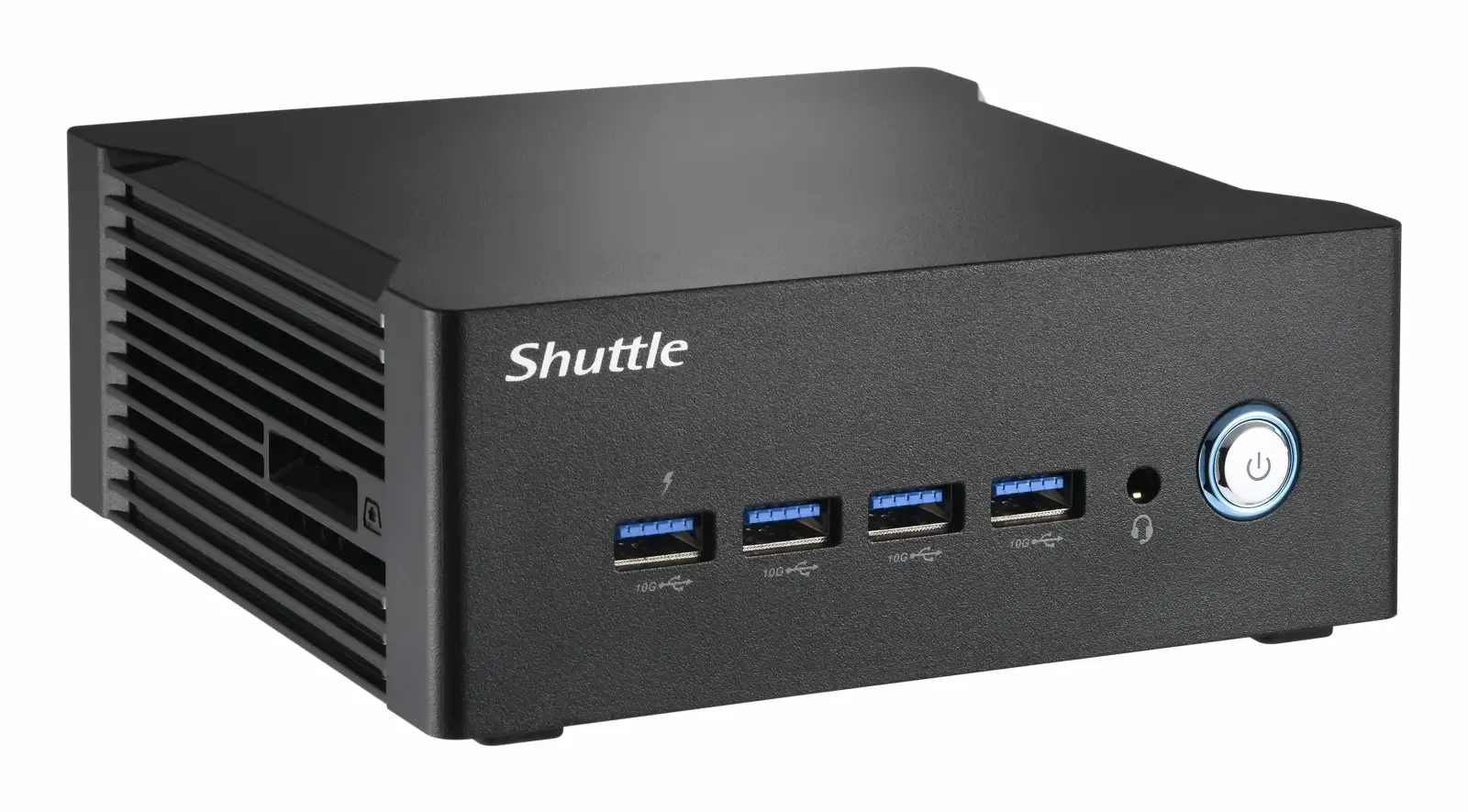

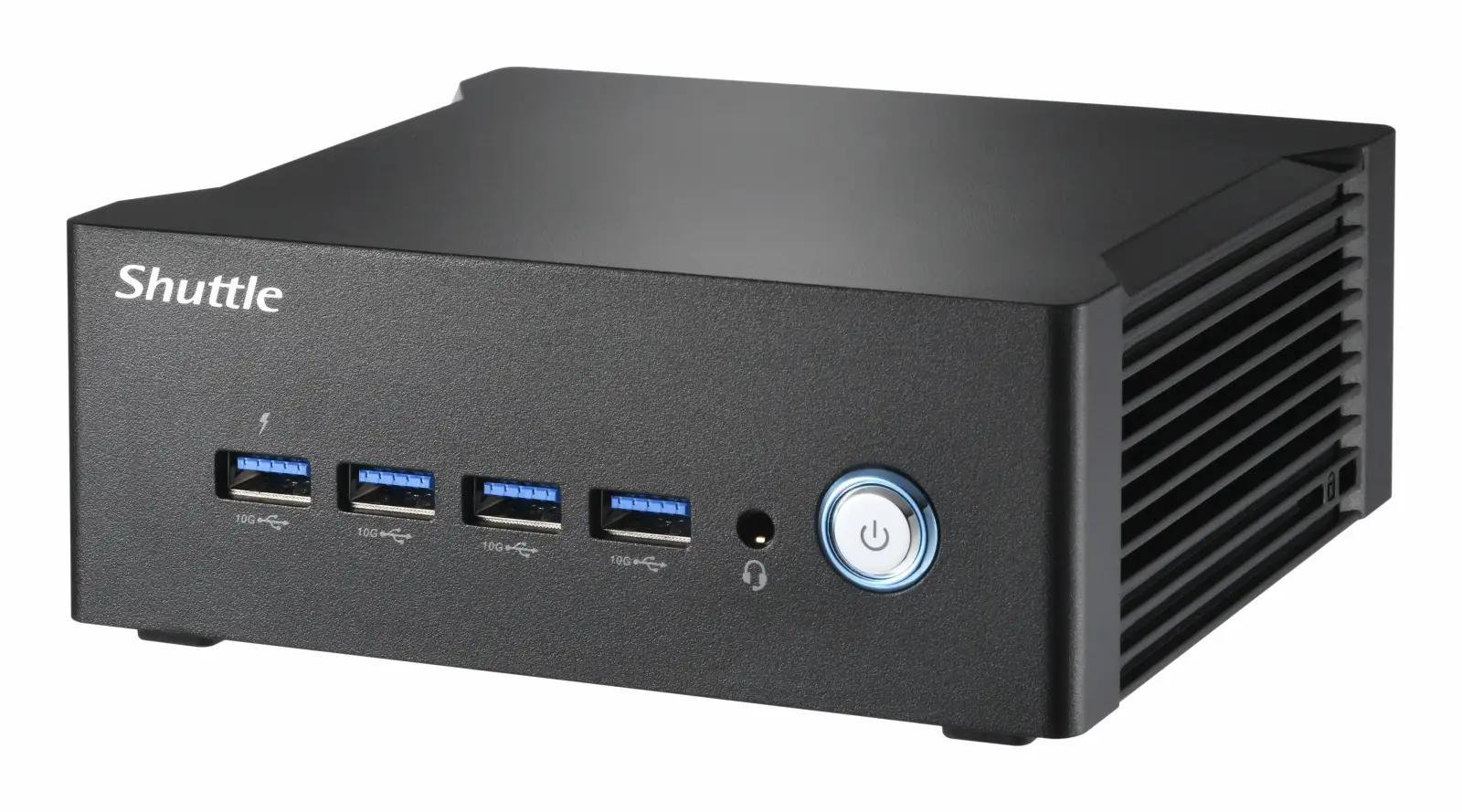

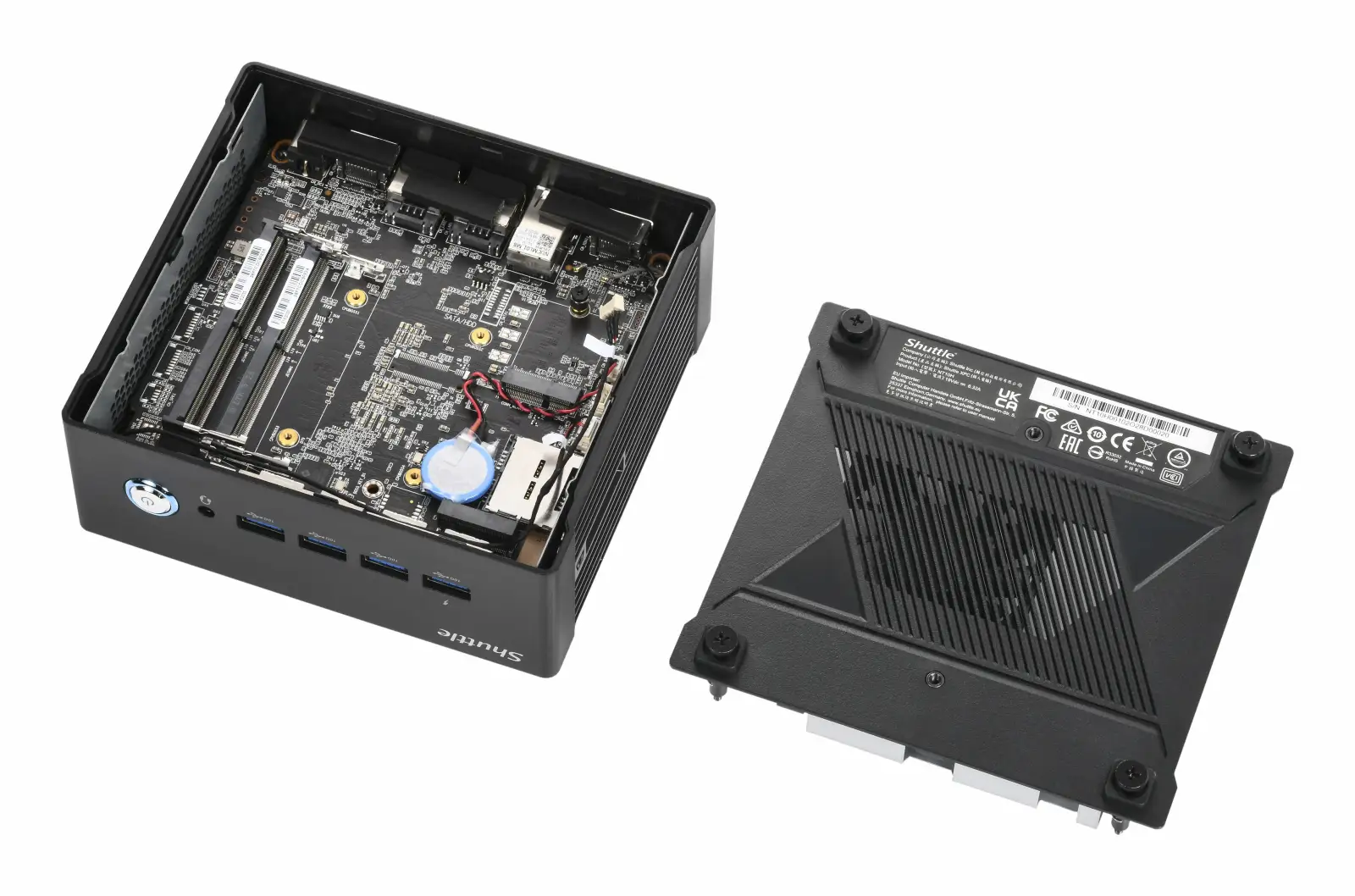

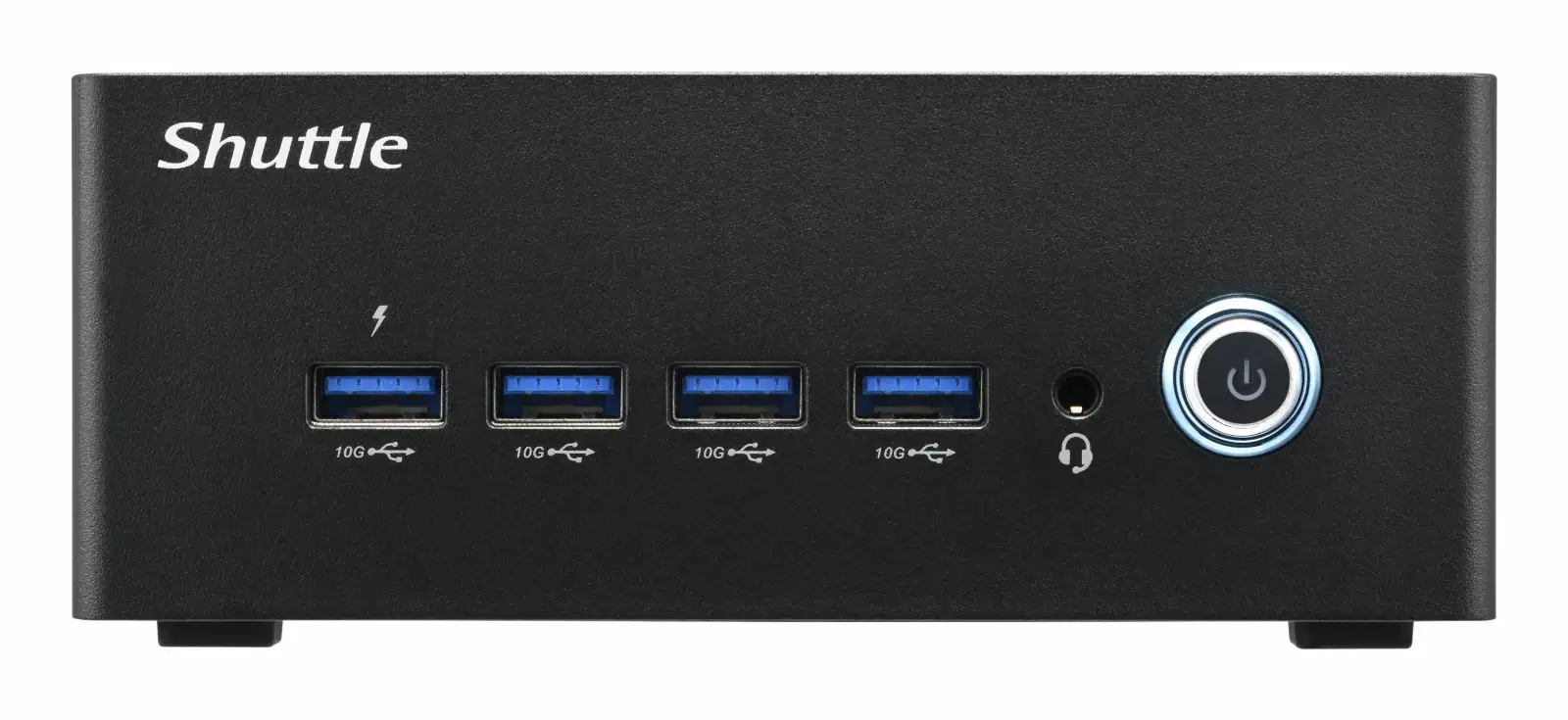

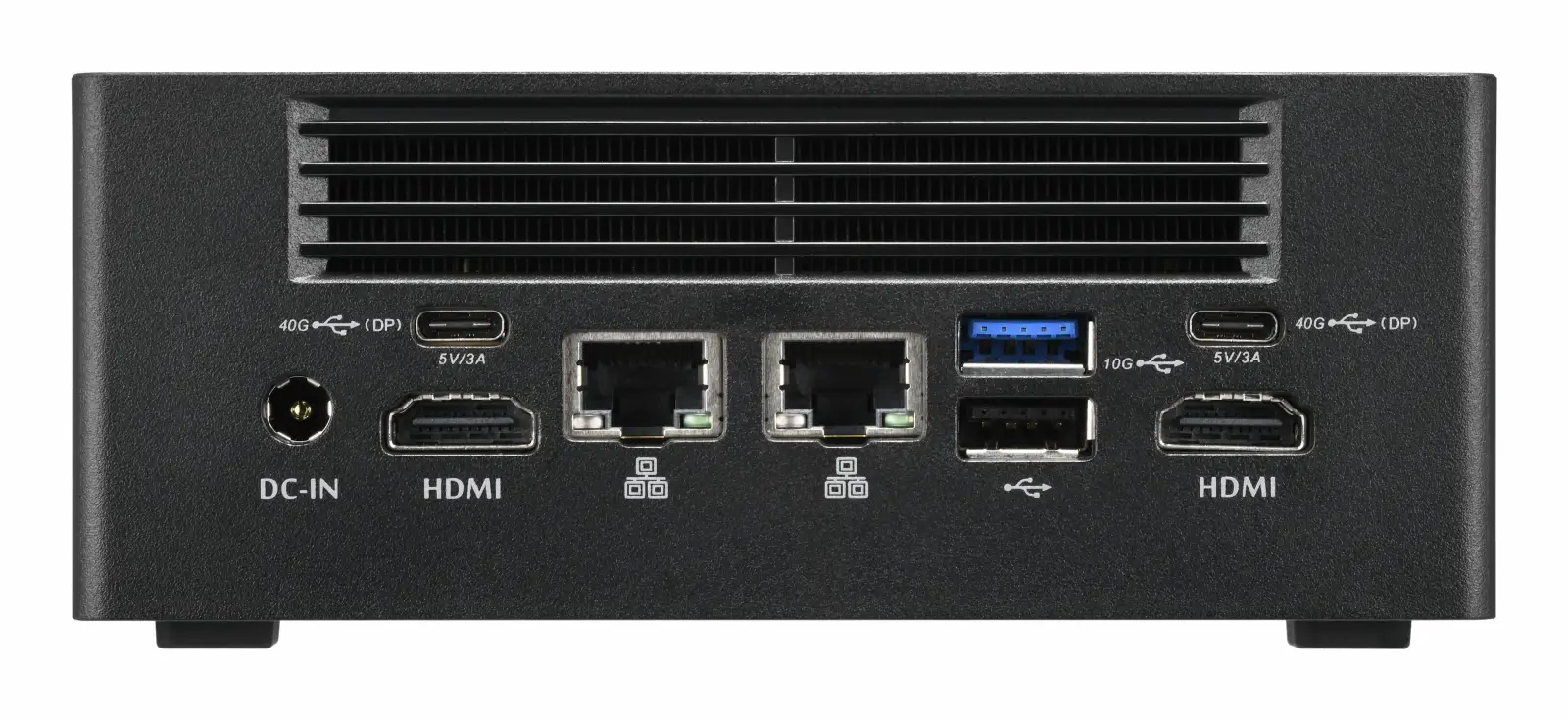

Tuotekuvat

Processor

Built-in processor

Kyllä

Processor manufacturer

AMD

Processor family

AMD Ryzen™ AI 5

Processor model

340

Processor cores

6

Processor threads

12

Processor boost frequency

4.8 GHz

Processor frequency

2 GHz

L2 cache

6 MB

L3 cache

16 MB

Thermal Design Power (TDP)

28 W

Memory

Internal memory installed

Ei

Memory slots type

SO-DIMM

Number of memory slots

2

Maximum internal memory

96 GB

Supported memory clock speeds

5600 MHz

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Memory voltage

1.1 V

ECC

Ei

Non-ECC

Kyllä

Storage

Storage drives installed

Ei

Supported storage drive types

SSD

Storage drive sizes supported

M.2 "

SSD form factor

M.2

M.2 SSD size

2280 (22 x 80 mm)

NVMe

Kyllä

Number of storage drives supported

1

Card reader integrated

Kyllä

Compatible memory cards

MicroSD (TransFlash), SDHC, SDXC

Graphics

On-board graphics card

Kyllä

Graphics card family

AMD

On-board graphics card model

AMD Radeon 840M

Maximum resolution

3840 x 2160 pixels

Number of displays supported

4

Performance

Motherboard chipset

AMD SoC

Number of processors supported

1

BIOS type

UEFI AMI

Trusted Platform Module (TPM)

Kyllä

Trusted Platform Module (TPM) version

2.0

Audio

Built-in speaker(s)

Ei

Network

Ethernet LAN

Kyllä

Wi-Fi

Ei

LAN controller

Realtek RTL8125BGS

Ports & interfaces

USB 2.0 ports quantity

1

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

5

USB4 Gen 3x2 ports quantity

2

HDMI ports quantity

2

HDMI version

2.1

VGA (D-Sub) ports quantity

0

Combo headphone/mic port

Kyllä

Ethernet LAN (RJ-45) ports

2

DC-in jack

Kyllä

Design

Chassis type

1L sized PC

Product colour

Black

Cooling type

Active

On/off switch

Kyllä

LED indicators

Kyllä

Housing material

Plastic

Cable lock slot

Kyllä

Cable lock slot type

Kensington

VESA mounting

Kyllä

Panel mounting interface

100 x 100,75 x 75 mm

Product type

Mini PC barebone

Technical details

Compliance certificates

CE, Federal Communications Commission (FCC), BSMI, RoHS

Logistics data

Harmonized System (HS) code

84714900

Software

Windows operating systems supported

Windows 11

Linux operating systems supported

Kyllä

Operating system installed

Ei

Sustainability

Sustainability certificates

ErP, ENERGY STAR

Power

Power supply type

External AC adapter

Power supply

120 W

Number of power supply units

1

AC input voltage

100 - 240 V

AC input frequency

50/60 Hz

AC adapter output voltage

19 V

AC adapter output current

6.32 A

Operational conditions

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 90 %

Weight & dimensions

Width

132 mm

Depth

143 mm

Height

55 mm

Weight

800 g

Package weight

1700 g

Packaging content

Power cord included

Kyllä

AC adapter included

Kyllä

Quick start guide

Kyllä

Drivers included

Kyllä
