Tuotetiedot
Tuote
- Valmistaja
- Silverstone
- Tuotenimi
- ST50F-ES230
- Julkaisupäivä
- 24.06.2014
- Valmistajan linkki
- http://silverstonetek.com/product.php?pid=362&area=en
Tuotekoodit
- Valmistajan tuotekoodit
- SST-ST50F-ES-230 BLA
- GTIN- / EAN-koodit
- 4710007220221

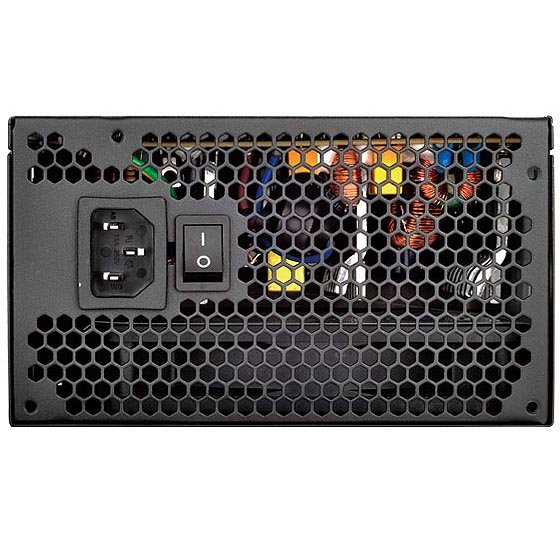

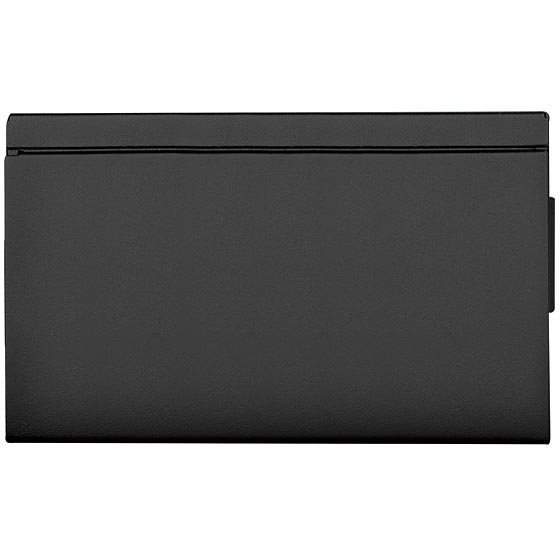

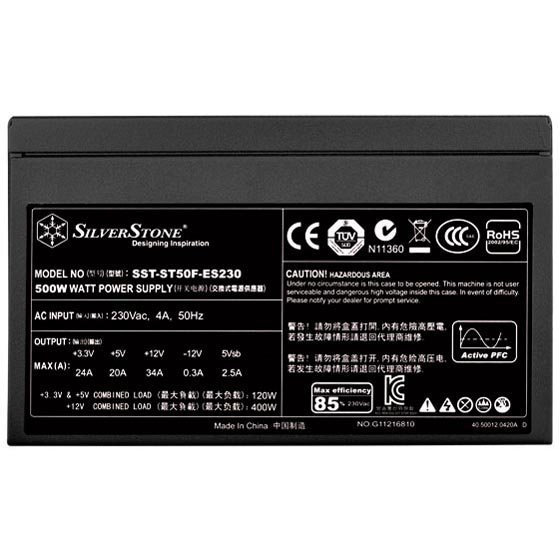

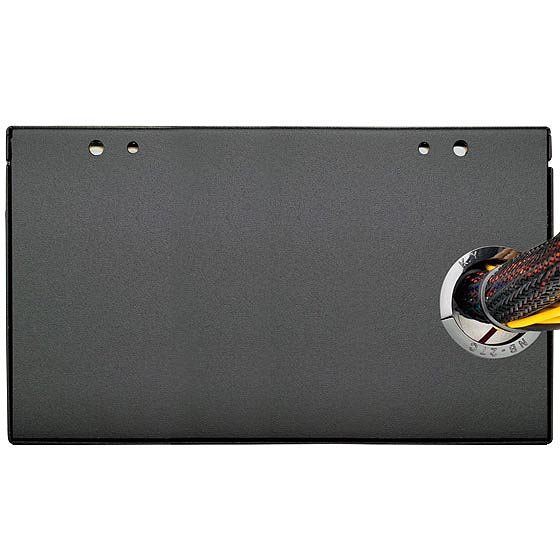

Tuotekuvat
Power
- Total power
- 500 W
- AC input voltage
- 207 - 253 V
- AC input frequency
- 47 - 53 Hz
- Power Factor Correction (PFC) type
- Active
- Combined power (+3.3V)
- 120 W
- Combined power (+12V)
- 400 W
- Combined power (+5V)
- 120 W
- Max output current (+3.3V)
- 24 A
- Max output current (+12V)
- 34 A
- Max output current (+5V)
- 20 A
- Max output current (-12V)
- 0.3 A
- Max output current (+5Vsb)
- 2.5 A
- Efficiency
- 82 %
- Power protection features
- Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector
- 24-pin ATX
- Motherboard power cable length
- 450 mm
- Number of SATA power connectors
- 6
- Peripheral (Molex) power connectors (4-pin)
- 3
- EPS power connector (8-pin)
- Kyllä
- PCI Express power connectors (6+2 pin)
- 2
- CPU P4 connector (4-pin)
- 1
- Floppy drive power connector
- 1
- Floppy disk drive connector
- Kyllä
- Cabling type
- Non-Modular
Performance
- Purpose
- PC
- Power supply unit (PSU) form factor
- ATX
- 80 PLUS certification
- 80 PLUS
- ATX version
- 2.4
- Noise level
- 18 dB
- Mean time between failures (MTBF)
- 100000 h
Design
- Product colour
- Black
- Fan diameter
- 120 mm
- Number of fans
- 1 fan(s)
- On/off switch
- Kyllä
Operational conditions
- Operating temperature (T-T)
- 0 - 40 °C
Weight & dimensions
- Width
- 150 mm
- Depth
- 140 mm
- Height
- 86 mm
