ASUS ROG GR6-R007R

Tuote

Valmistaja

ASUS

Tuoteperhe / -sarja

ROG

Tuotenimi

GR6-R007R

Julkaisupäivä

28.04.2015

Valmistajan linkki

http://www.asus.com/ROG_Console_PC/ROG_GR6/overview/

Tuotekoodit

GTIN- / EAN-koodit

• 4712900022056

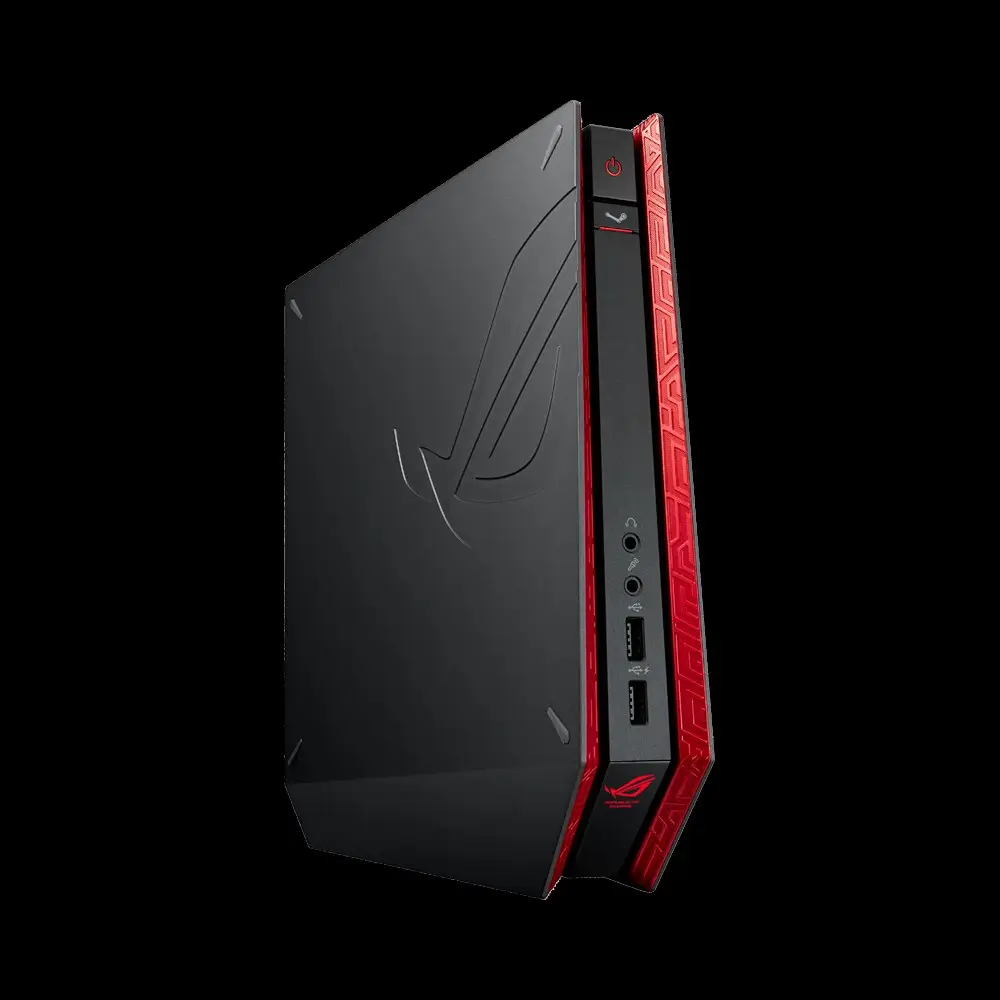

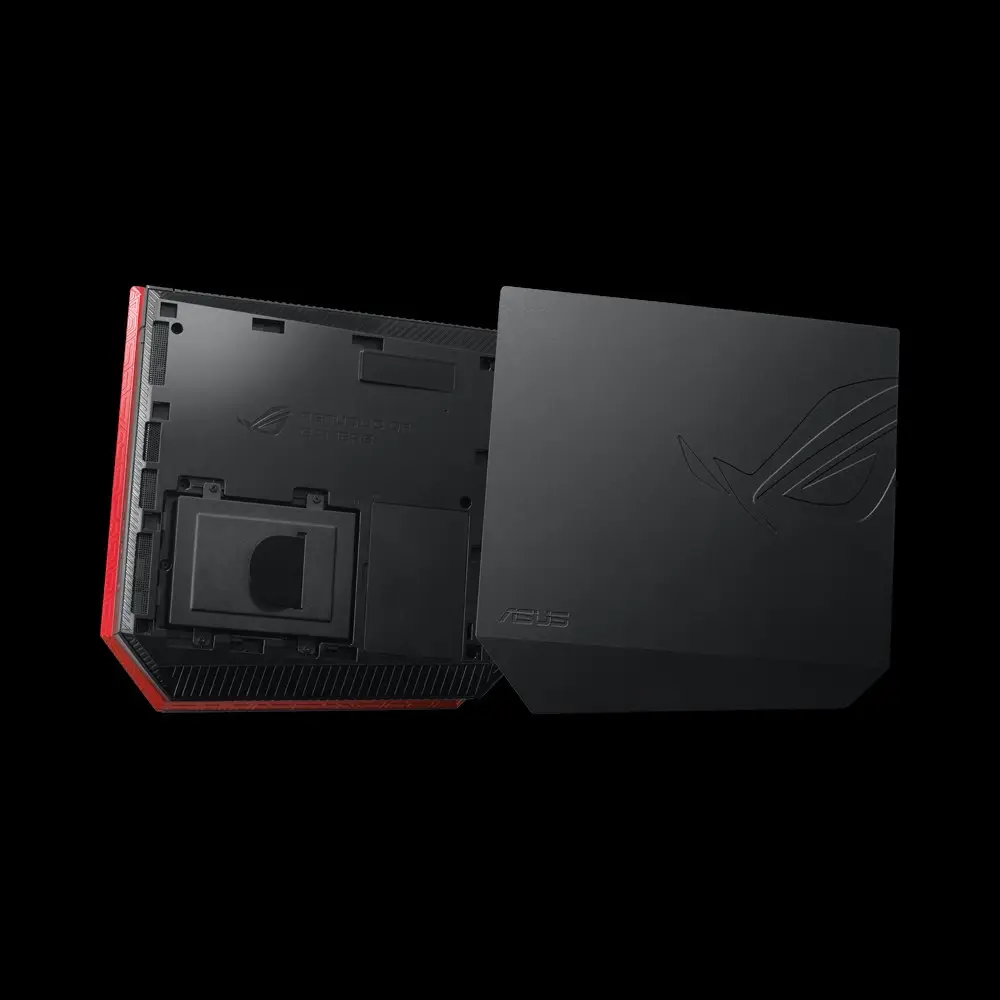

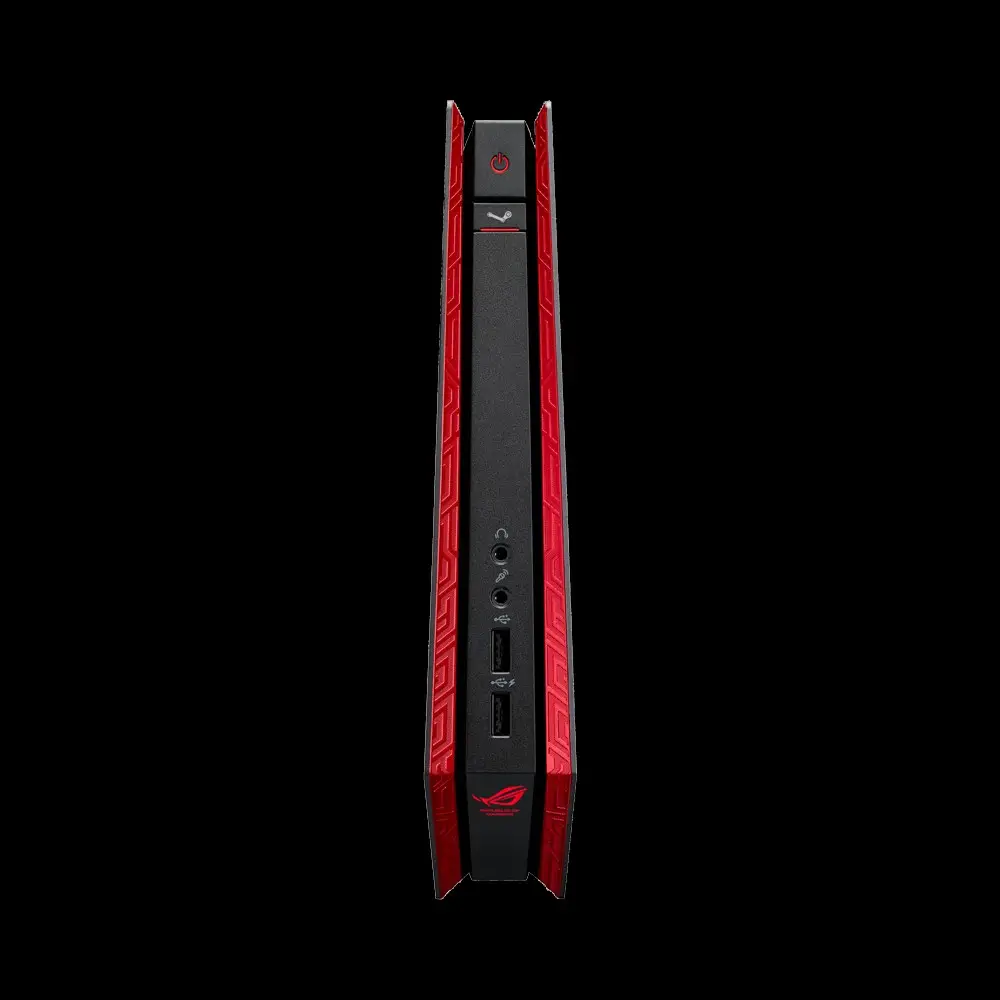

Tuotekuvat

Processor

Processor frequency

2.2 GHz

Processor family

5th gen Intel® Core™ i5

Processor model

i5-5200U

Processor cores

2

Processor boost frequency

2.7 GHz

Processor socket

BGA 1168

Processor cache

3 MB

Processor cache type

Smart Cache

Processor threads

4

System bus rate

5 GT/s

Bus type

DMI2

FSB Parity

Ei

Processor lithography

14 nm

Processor operating modes

32-bit,64-bit

Processor series

Intel® Core™ i5-5200 Mobile Series

Processor codename

Broadwell

Thermal Design Power (TDP)

15 W

Configurable TDP-down frequency

600 MHz

Tjunction

105 °C

PCI Express slots version

2.0

Maximum number of PCI Express lanes

12

PCI Express configurations

4x1,2x4

Number of processors installed

1

Stepping

F0

Maximum internal memory supported by processor

16 GB

Memory types supported by processor

DDR3L-SDRAM,LPDDR3-SDRAM

Memory clock speeds supported by processor

1333,1600 MHz

Memory bandwidth supported by processor (max)

25.6 GB/s

Memory channels supported by processor

Dual

ECC supported by processor

Ei

Memory

Internal memory

8 GB

Internal memory type

DDR3L-SDRAM

Maximum internal memory

16 GB

Memory slots

2x SO-DIMM

Memory clock speed

1600 MHz

Storage

Total storage capacity

128 GB

Card reader integrated

Ei

Storage media

SSD

HDD size

2.5 "

Number of SSDs installed

1

SSD capacity

128 GB

SSD interface

Serial ATA III

Graphics

On-board graphics adapter

Kyllä

Discrete graphics adapter model

NVIDIA® GeForce® GTX 960M

Discrete graphics adapter memory

2048 GB

Number of discrete graphics adapters

1

On-board graphics adapter family

Intel® HD Graphics

On-board graphics adapter model

Intel® HD Graphics 5500

On-board graphics adapter base frequency

300 MHz

On-board graphics adapter dynamic frequency (max)

900 MHz

Maximum on-board graphics adapter memory

16 GB

Number of displays supported (on-board graphics)

3

On-board graphics adapter DirectX version

11.2

On-board graphics adapter ID

0x1616

Optical drive

Optical drive type

Ei

Networking

Ethernet LAN

Kyllä

Ethernet LAN data rates

10,100,1000 Mbit/s

Cabling technology

10/100/1000Base-T(X)

Wi-Fi

Kyllä

Top Wi-Fi standard

Wi-Fi 5 (802.11ac)

Wi-Fi standards

802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)

Wake-on-LAN ready

Kyllä

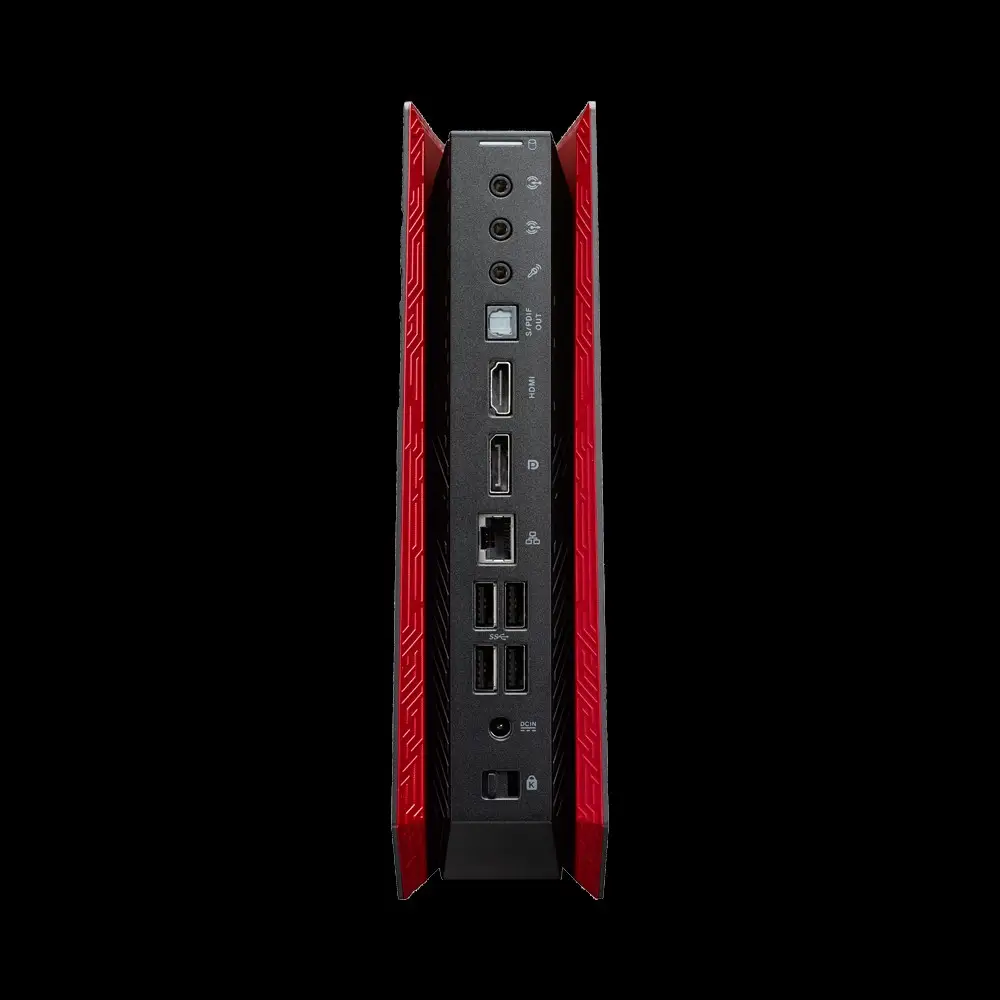

Ports & interfaces

USB 2.0 ports quantity

2

USB 3.0 (3.1 Gen 1) Type-A ports quantity

4

DVI port

Ei

HDMI ports quantity

1

DisplayPorts quantity

1

Ethernet LAN (RJ-45) ports

1

Microphone in

Kyllä

Headphone outputs

1

Line-out

Kyllä

Line-in

Kyllä

S/PDIF out port

Kyllä

DC-in jack

Kyllä

Design

Chassis type

Mini PC

Product colour

Black,Red

Volume

2.5 L

Water cooling system

Ei

Number of 2.5" bays

1

Cable lock slot

Kyllä

Cable lock slot type

Kensington

Performance

Product type

PC

Audio system

ROG SupremeFX

Audio output channels

5.1 channels

Software

Operating system installed

Windows 8.1

Operating system architecture

64-bit

Processor special features

Intel® vPro™ Technology

Ei

Intel® Small Business Advantage (Intel® SBA)

Kyllä

Intel® Wireless Display (Intel® WiDi)

Kyllä

Intel 64

Kyllä

Enhanced Intel SpeedStep Technology

Kyllä

Embedded options available

Ei

Intel® InTru™ 3D Technology

Kyllä

Intel® Insider™

Kyllä

Intel® Clear Video HD Technology (Intel® CVT HD)

Kyllä

Intel Clear Video Technology

Kyllä

Intel VT-x with Extended Page Tables (EPT)

Kyllä

Thermal Monitoring Technologies

Kyllä

Intel® AES New Instructions (Intel® AES-NI)

Kyllä

Intel® Secure Key

Kyllä

Intel® OS Guard

Kyllä

Intel Trusted Execution Technology

Ei

Execute Disable Bit

Kyllä

Intel FDI Technology

Kyllä

Intel Flex Memory Access

Kyllä

Intel Fast Memory Access

Kyllä

Intel Enhanced Halt State

Kyllä

Intel Demand Based Switching

Ei

Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)

Kyllä

Processor package size

40 mm

Supported instruction sets

AVX 2.0,SSE4.1,SSE4.2

Processor code

SR23Y

CPU configuration (max)

1

Graphics & IMC lithography

14 nm

Intel Virtualization Technology for Directed I/O (VT-d)

Kyllä

Intel Identity Protection Technology version

1.00

Intel Secure Key Technology version

1.00

Intel Virtualization Technology (VT-x)

Kyllä

Intel Small Business Advantage (SBA) version

1.00

Intel Smart Response Technology version

1.00

Intel Dual Display Capable Technology

Ei

Intel Rapid Storage Technology

Ei

Processor ARK ID

85212

Intel® Smart Response Technology

Kyllä

Intel® Rapid Start Technology

Ei

Intel® Turbo Boost Technology

2.0

Intel Smart Connect Technology

Ei

Intel® Hyper Threading Technology (Intel® HT Technology)

Kyllä

Intel® Quick Sync Video Technology

Kyllä

Intel® My WiFi Technology (Intel® MWT)

Ei

Intel® Identity Protection Technology (Intel® IPT)

Kyllä

Intel® Anti-Theft Technology (Intel® AT)

Ei

Conflict Free processor

Kyllä

Power

Power supply

120 W

Certificates

Energy Star certified

Kyllä

Certification

BSMI/CB/CE/FCC/UL/C-Tick/VCCI

Weight & dimensions

Width

60 mm

Depth

245 mm

Height

238 mm

Weight

1284 g

Packaging content

Display included

Ei

Mouse included

Ei

Keyboard included

Ei

Manual

Kyllä

AC adapter included

Kyllä

Other features

Intel® Virtualization Technology (Intel® VT)

VT-d,VT-x
