Edimax WAP1750

Tuote

Valmistaja

Edimax

Tuotenimi

WAP1750

Julkaisupäivä

20.08.2014

Valmistajan linkki

http://www.edimax.com/edimax/merchandise/merchandise_detail/da..

Tuotekoodit

Valmistajan tuotekoodit

• WAP1750

GTIN- / EAN-koodit

• 4710700929889

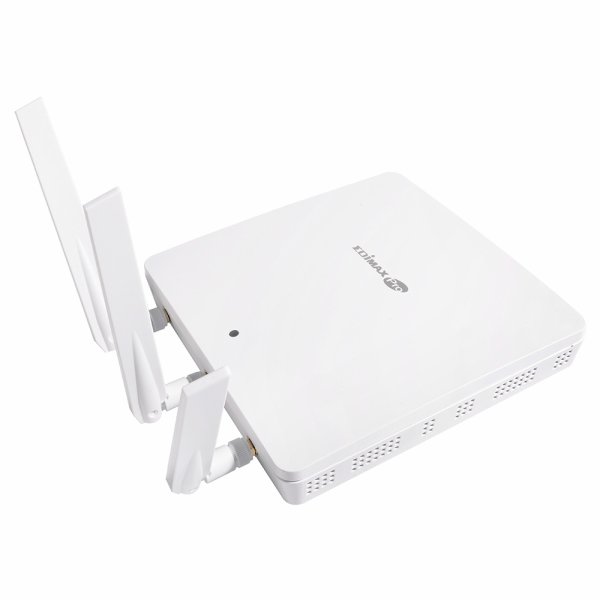

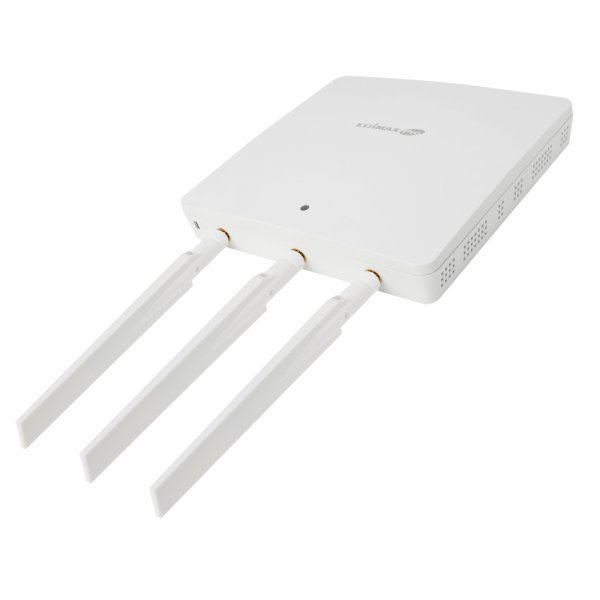

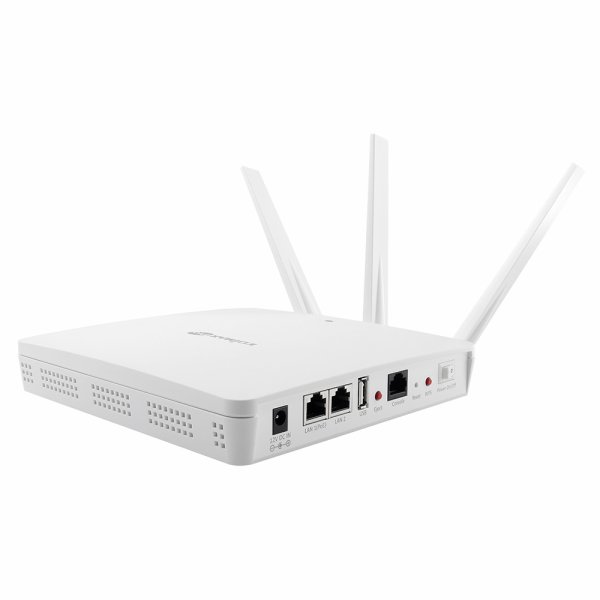

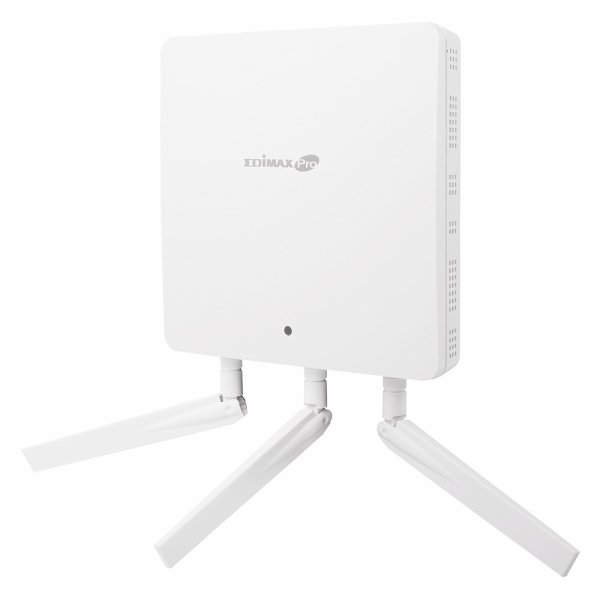

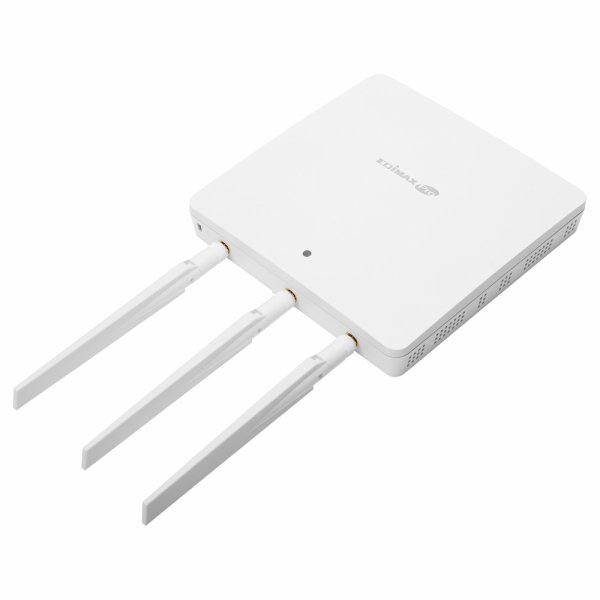

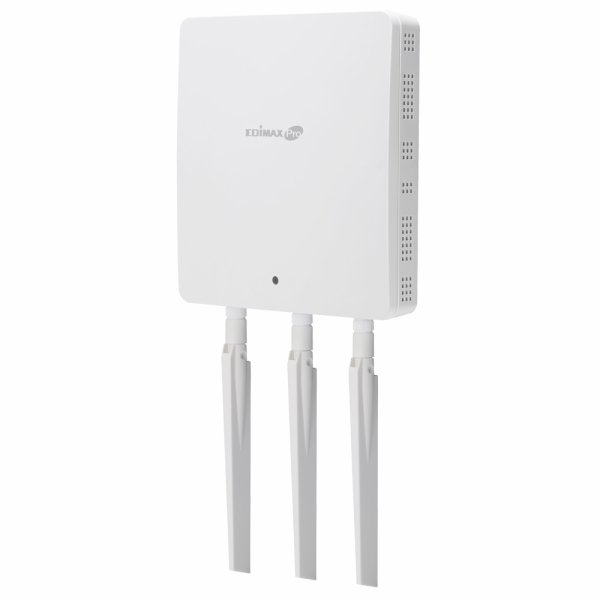

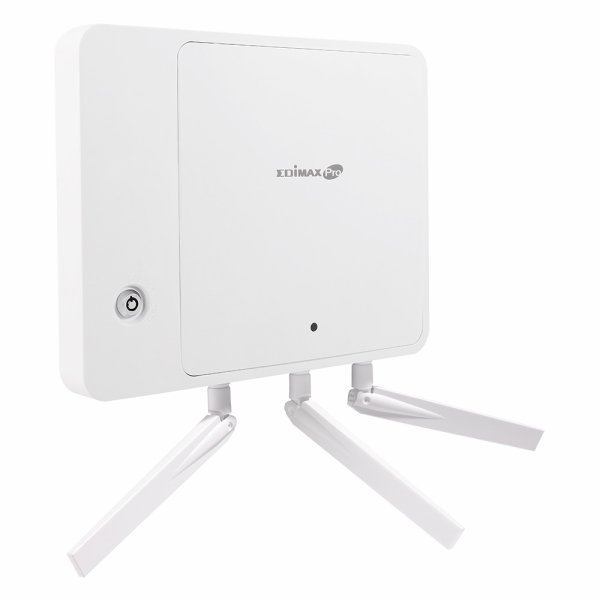

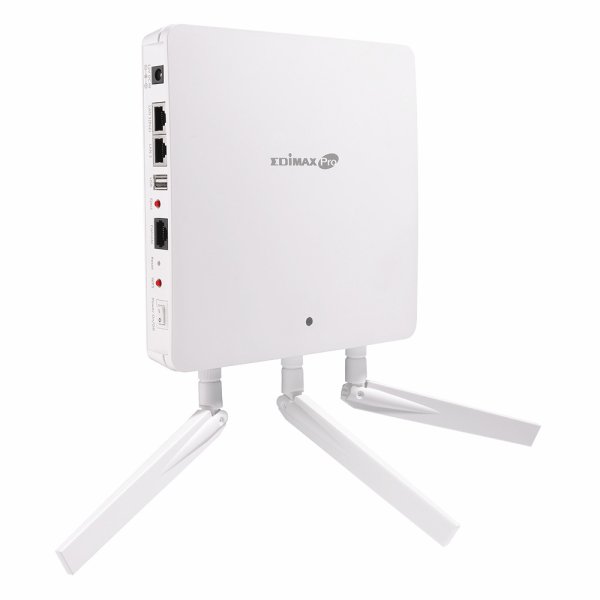

Tuotekuvat

Features

Maximum data transfer rate

1750 Mbit/s

Wi-Fi data rate (max)

1750 Mbit/s

Ethernet LAN data rates

10,100,1000 Mbit/s

Frequency band

2.412 - 484, 5.18 - 5.24, 5.26 - 5.32, 5.5 - 5.7 5.745 - 5.825 GHz

Networking standards

IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n, IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3u

VLAN support

Ei

Quality of Service (QoS) support

Kyllä

Receiver sensitivity

•802.11b ≤-93dBm@1Mbps ≤-90dBm@11Mbps •802.11g ≤-90dBm@6Mbps ≤-74dBm@54Mbps •802.11gn (2.4G) ≤-94.5dBm@MCS0 ≤-76.5dBm@MCS7 ≤-90dBm@MCS8 ≤-72dBm@MCS15 ≤-90dBm@MCS16 ≤-72dBm@MCS23 •802.11a ≤-90dBm@6Mbp ≤-72dBm@54Mbps •802.11an(5G) ≤-94.5dBm@MCS0 ≤-70.5dBm@MCS7 ≤-90dBm@MCS8 ≤-66dBm@MCS15 ≤-90dBm@MCS16 ≤-66dBm@MCS23 •802.11ac ≤ -90.5dBm@MCS0 ≤ -60.5dBm@MCS9

Security

Security algorithms

802.1x RADIUS, EAP-AKA, EAP-FAST, EAP-SIM, WEP, WPA, WPA2, WPS

MAC address filtering

Kyllä

VPN support

IPsec, L2TP, PPTP

Protocols

Management protocols

HTTP / HTTPS, SNMP v1/v2c/v3, Telnet, SSH

Ports & interfaces

Ethernet LAN (RJ-45) ports

2

Power

Power over Ethernet (PoE)

Kyllä

Output voltage

12 V

Output current

4 A

Power consumption (typical)

15 W

Output power description

27.5(±2)dBm

Design

Product colour

White

Reset button

Kyllä

LED indicators

Kyllä

Internal

Ei

Antenna

Antenna type

External

Antennas quantity

3

Antenna gain level (max)

2 dBi

Certificates

Certification

CE / FCC

Weight & dimensions

Width

183 mm

Depth

36 mm

Height

183 mm

Weight

560 g

Operational conditions

Operating temperature (T-T)

0 - 50 °C

Logistics data

Harmonized System (HS) code

85176990
