ASUS Z170-P D3
Ominaisuudet
- Prosessorin kanta
- LGA 1151 (Socket H4)
- Emolevyn muototekijä
- ATX
- Emolevyn piirisarja
- Intel® Z170
- Tuetut muistityypit
- DDR3-SDRAM
Arvostelut
Arvostele tuoteTuotetiedot
Tuote
- Valmistaja
- ASUS
- Tuotenimi
- Z170-P D3
- Valmistajan linkki
- http://www.asus.com/Motherboards/Z170-P-D3/
Tuotekoodit
- Valmistajan tuotekoodit
- 90MB0LV0-M0EAY0
- Z170-P D3
- Z170-P-D3
- GTIN- / EAN-koodit
- 4712900120790

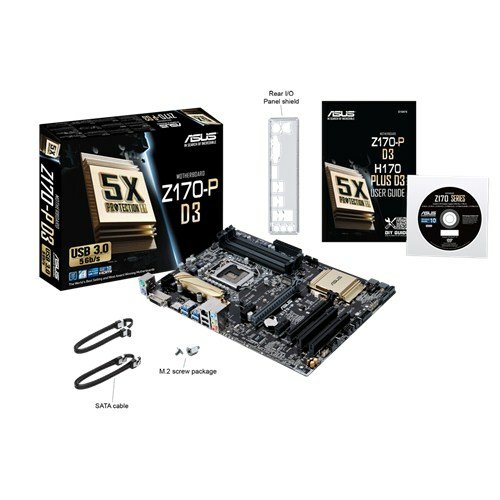

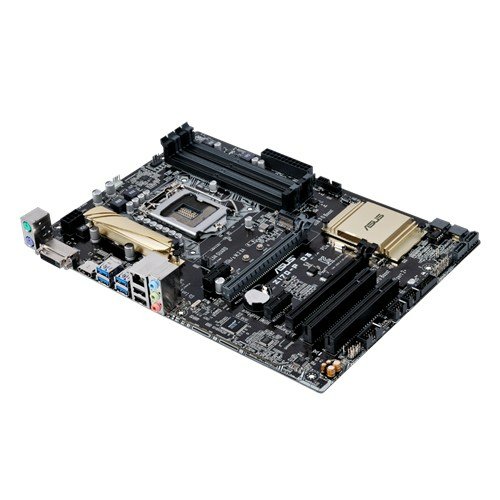

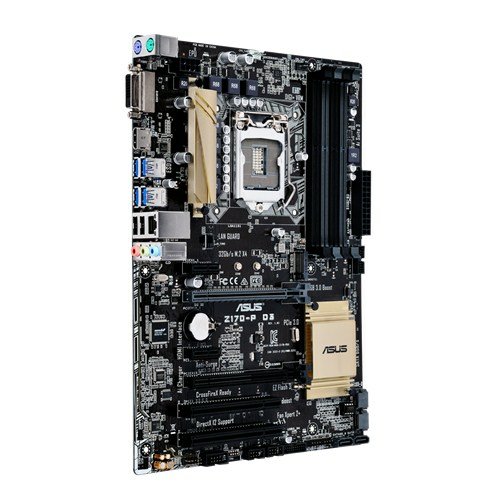

Tuotekuvat
Processor
- Processor manufacturer
- Intel
- Processor socket
- LGA 1151 (Socket H4)
- Compatible processor series
- Intel® Celeron®, Intel® Pentium®
Memory
- Supported memory types
- DDR3-SDRAM
- Number of memory slots
- 4
- Memory slots type
- DIMM
- Memory channels
- Dual-channel
- ECC сompatibility
- Non-ECC
- Supported memory clock speeds
- 1333,1600,1866,2000,2133,2200,2400,2666,2800,2933,3000,3100 MHz
- Maximum internal memory
- 64 GB
- Unbuffered memory
- Kyllä
Storage controllers
- Supported storage drive interfaces
- SATA, SATA III
- RAID levels
- 1, 5, 10
Internal I/O
- USB 2.0 connectors
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors
- 2
- Number of SATA III connectors
- 4
- Number of Parallel ATA connectors
- 0
- S/PDIF out connector
- Kyllä
- Front panel audio connector
- Kyllä
- ATX Power connector (24-pin)
- Kyllä
- Number of EATX power connectors
- 1
- CPU fan connector
- Kyllä
- Number of chassis fan connectors
- 2
- EPS power connector (8-pin)
- Kyllä
- Number of COM connectors
- 1
- TPM connector
- Kyllä

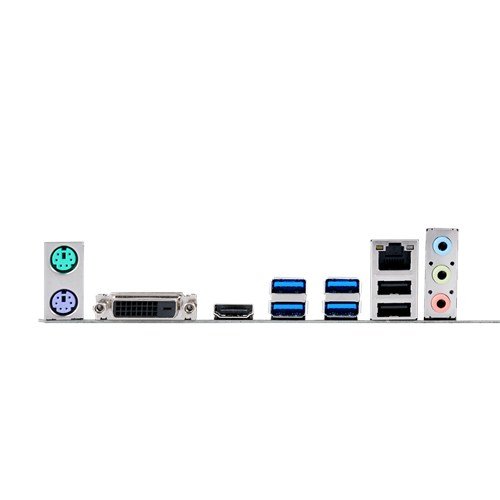

Rear panel I/O ports
- USB 2.0 ports quantity
- 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
- 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
- 0
- Ethernet LAN (RJ-45) ports
- 1
- eSATA ports quantity
- 0
- PS/2 ports quantity
- 2
- Firewire (IEEE 1394) ports
- 0
- VGA (D-Sub) ports quantity
- 0
- HDMI ports quantity
- 1
- DVI-D ports quantity
- 1
- Headphone outputs
- 1
- Microphone in
- Kyllä
Network
- Ethernet LAN
- Kyllä
- Ethernet interface type
- Gigabit Ethernet
- LAN controller
- Realtek 8111GR
Features
- Component for
- PC
- Motherboard form factor
- ATX
- Motherboard chipset family
- Intel
- Motherboard chipset
- Intel® Z170
- Audio output channels
- 7.1 channels
- Power source type
- ATX
Expansion slots
- PCI Express x1 (Gen 3.x) slots
- 2
- PCI Express x16 (Gen 3.x) slots
- 2
- PCI slots
- 2
- Number of M.2 (M) slots
- 1
BIOS
- BIOS type
- UEFI AMI
- BIOS memory size
- 16 Mbit
- ACPI version
- 5.0
- Clear CMOS jumper
- Kyllä
Processor special features
- Intel Extreme Memory Profile (XMP)
- Kyllä
Weight & dimensions
- Width
- 305 mm
- Depth
- 218 mm
